“Strange Pocket” Biscuits and Biscuits by Tapping

This is from Nursery rhyme “Strange Biscuits” (famous in japan). The number of biscuit on Web site is increase by tapping a pocket.

Materials

Steps

Connect an acceleration sensor to an obniz.

obniz acceleration sensor
0 Vcc (1)
1 GND (3)
2 X axis input (6)
3 Y axis input(7)
4 Z axis input (8)
5 Enable (2)
6 Self Test (5)

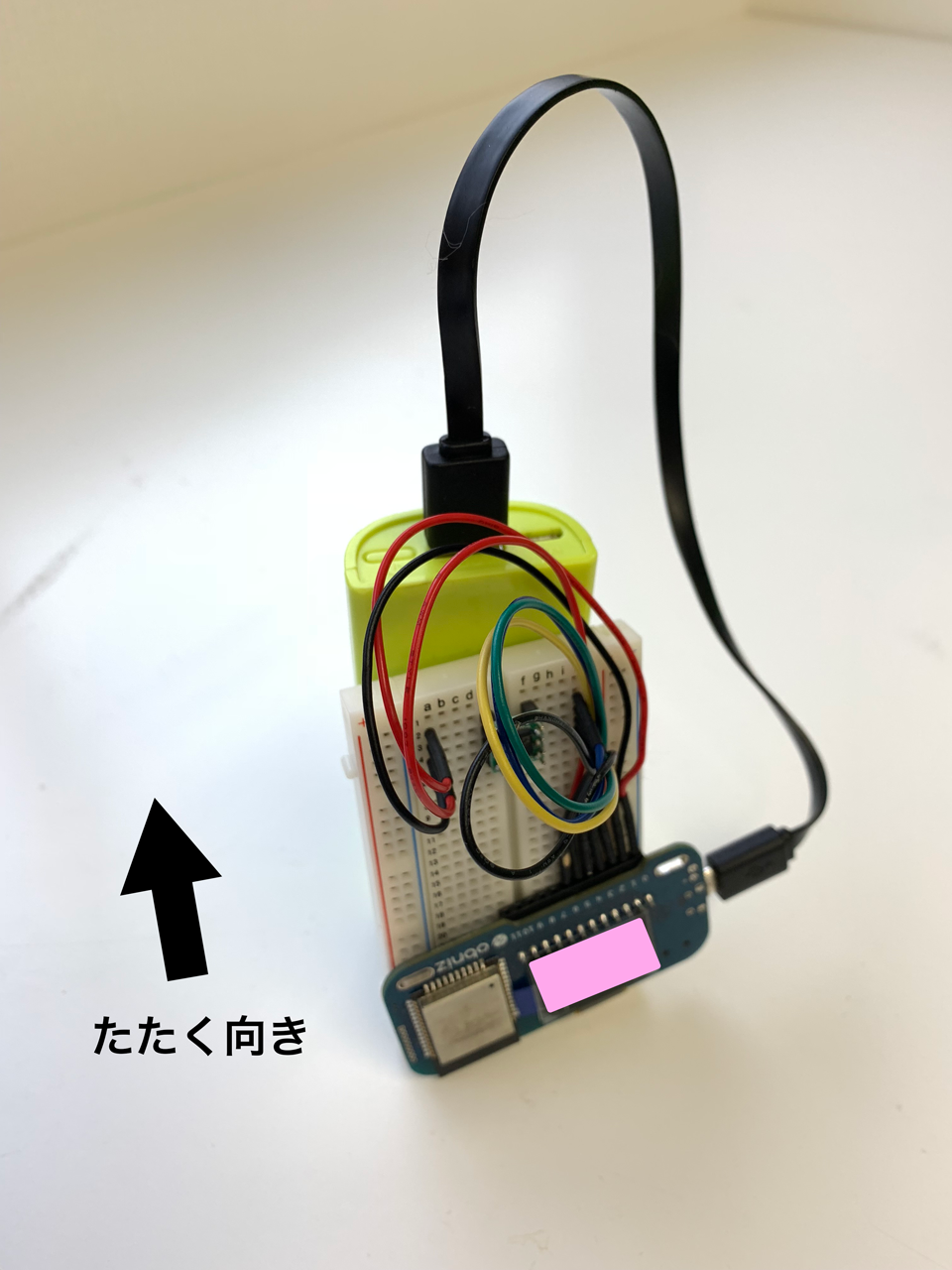

Insert this circuit to your pocket this direction.

Connect a power source to an obniz and access this website. If you tap your pocket, the number of biscuits is increasing.

Keeping gap between pocket and you will improve sensitivity.

Program

<!-- HTML Example -->
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<script src="https://obniz.com/js/jquery-3.2.1.min.js"></script>
<script src="https://unpkg.com/[email protected]/obniz.js" crossorigin="anonymous"></script>
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css" integrity="sha384-9gVQ4dYFwwWSjIDZnLEWnxCjeSWFphJiwGPXr1jddIhOegiu1FwO5qRGvFXOdJZ4" crossorigin="anonymous">
<style>
body {
	background-image: url("https://yahoo.jp/box/4m1j_d");
	background-position: center center;
	background-repeat: no-repeat;
	background-size: cover;
}
p.original {
	text-align: center;
}
</style>
<title>ふしぎなポケット</title>
</head>
<body>
<div id="bis-images">
 <p class="original"><img src="" width="16%" height="16%"></p>
</div>
<script>

  $(function(){

	  //ビスケット画像のURL
	const bis0URL = "https://yahoo.jp/box/Q1_f_h";
	const bis1URL = "https://yahoo.jp/box/gI6mbV";
	const bis2URL = "https://yahoo.jp/box/vbmFHZ";
	const bis3URL = "https://yahoo.jp/box/ZgtLl7";
	const bis4URL = "https://yahoo.jp/box/vlxDc2";

	const bisImages = [bis0URL, bis1URL, bis2URL, bis3URL, bis4URL];

	$(".original").find("img").attr('src',bis1URL);

	  const WIN_WIDTH = $(window).width();
	  const WIN_HEIGHT = $(window).height();
	  const IMG_WIDTH = 1024;
	  const IMG_HEIGHT = 768;

	  const ARR_LIMIT_NUM = 20;
	  const PAUSE_MILL = 800;

	  let reacting = false;

	  //1,8ピン側を上にしてZ軸プラスからマイナスの方向へ叩く前提です
	  //この閾値は適宜調整してください
	  const Z_HIT_THRESHOLD = 0.2;

	  let hitCount = 0;
	  let prevFilteredVal = {x: 0, y: 0, z: 0};
	  let rawAccelX = [];
	  let rawAccelY = [];
	  let rawAccelZ = [];

	  let obniz = new Obniz("OBNIZ_ID_HERE");

	  obniz.onconnect = async function(){
        let accel = obniz.wired("KXR94-2050", { vcc:0, gnd:1, x:2, y:3, z:4, enable:5, self_test:6});

		obniz.repeat(async () => {
		   if(reacting){
			  return;
		  }

		  let accelValues = await accel.getWait();

		  //フィルタの適用と配列の制御
		  let filteredX = await applyFilter(rawAccelX, accelValues.x);
		  let filteredY = await applyFilter(rawAccelY, accelValues.y);
		  let filteredZ = await applyFilter(rawAccelZ, accelValues.z);

		  console.log("fZ: "+filteredZ);


		  //前ループとの差分で振動を判断
          if((filteredZ - prevFilteredVal.z) > Z_HIT_THRESHOLD){

			reacting = true;
			console.log("hit");
			await addBiscuit();
			await obniz.wait(PAUSE_MILL);
			reacting = false;

          }

		  //前回のループの値として保存
		  prevFilteredVal = {x: filteredX, y: filteredY, z: filteredZ};
		}, 100);


	  }


	  function arrangeArray(arr, val){
		arr.push(val);
		if(arr.length > ARR_LIMIT_NUM){
	      arr.shift();
		}
	  }

	  //フィルタ
	  async function applyFilter(arr, val){
		const FILTER_PARAM = 0.8;
		const ACCEL_SPAN = 0.1;

		let lowpassVal = 0;
		let highpassVal = 0;

		await arrangeArray(arr, val);

		for(let i=0; i<arr.length; i++){
	  	  lowpassVal = FILTER_PARAM * lowpassVal + (1 - FILTER_PARAM) * arr[i];
	  	  highpassVal = arr[i] - lowpassVal;
		}

		return highpassVal;
	  }

	  async function addBiscuit(){

		let img = bisImages[Math.floor(Math.random()*bisImages.length)];

		await $("#bis-images").append('<p class="added'+hitCount+'"><img src='+img+' width="16%" height="16%"></p>');

		let leftPos = Math.floor(Math.random() * (WIN_WIDTH - 160));
		let topPos = Math.floor(Math.random() * (WIN_HEIGHT - 80));

		await $(".added"+hitCount).css({'width':IMG_WIDTH, 'height':IMG_HEIGHT});
		await $(".added"+hitCount).css({'position':'absolute'});
		await $(".added"+hitCount).css({'left':leftPos+'px', 'top':topPos+'px'});

		await hitCount++;
	  }

  });

</script>
</body>
</html>
