Get Color Value from Color Sensor
Contents
Make things

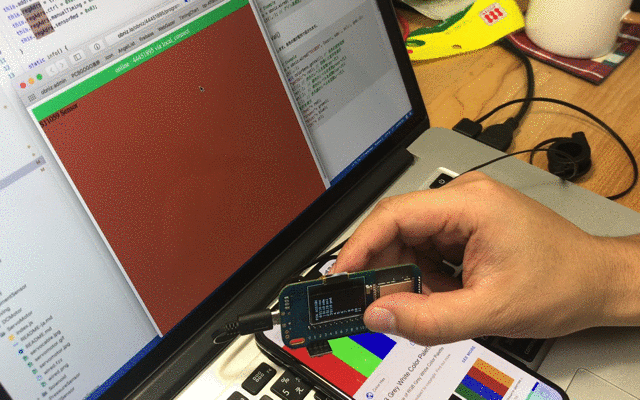

Displaying the color got from color sensor on HTML.
It shows mostly the same color as you get, but calibration is needed.
Materials
- obniz Board x1
- power supply for obniz x1
- S11059-02DT(color sensor) x1
How to make
Hardware connection
Connect color sensor to an obniz like the table and the image below.
| obniz | S11059-02DT(color sensor) |
|---|---|
| 0 | Vcc |
| 1 | SDA |
| 2 | SCL |
| 3 | GND |
Software
Use toString() function to convert to hexadecimal, and to color code with slice() function.
var redStr = red.toString(16); var greenStr = green.toString(16);
var blueStr = blue.toString(16);
var colorCode = "#" + ("00" + redStr).slice(-2) + ("00" + greenStr).slice(-2) + ("00" + blueStr).slice(-2);
